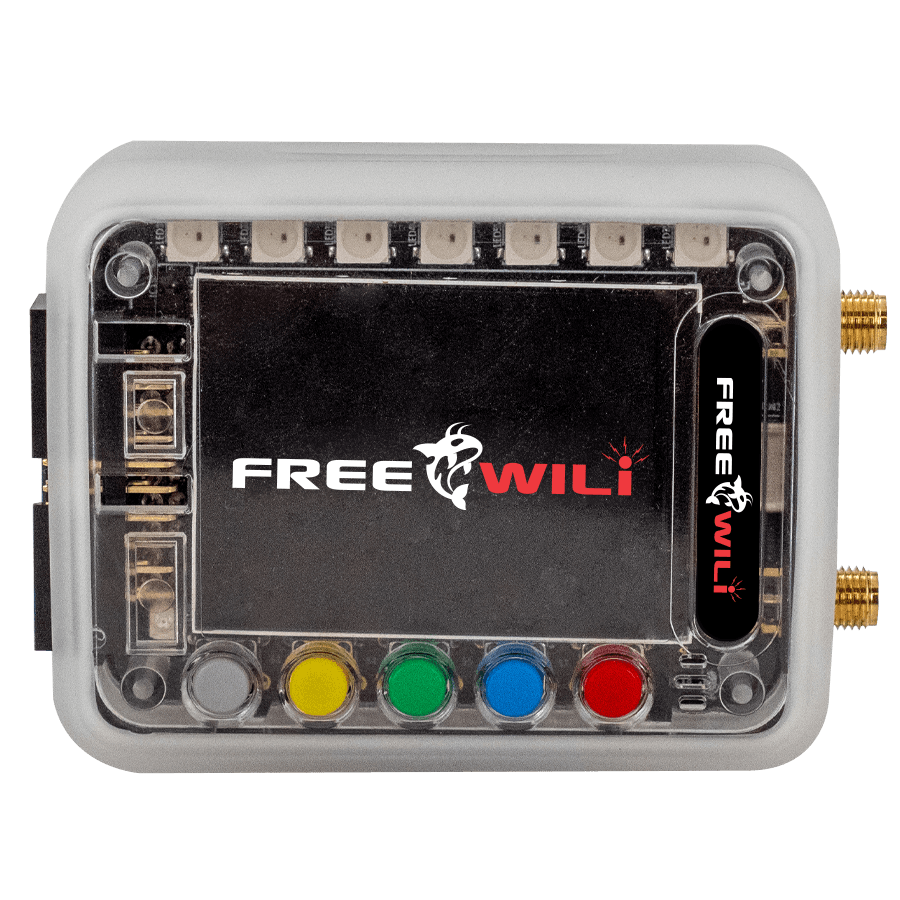

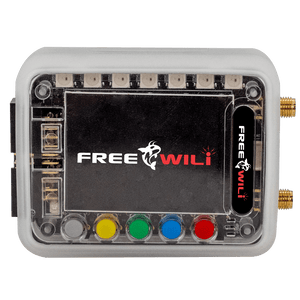

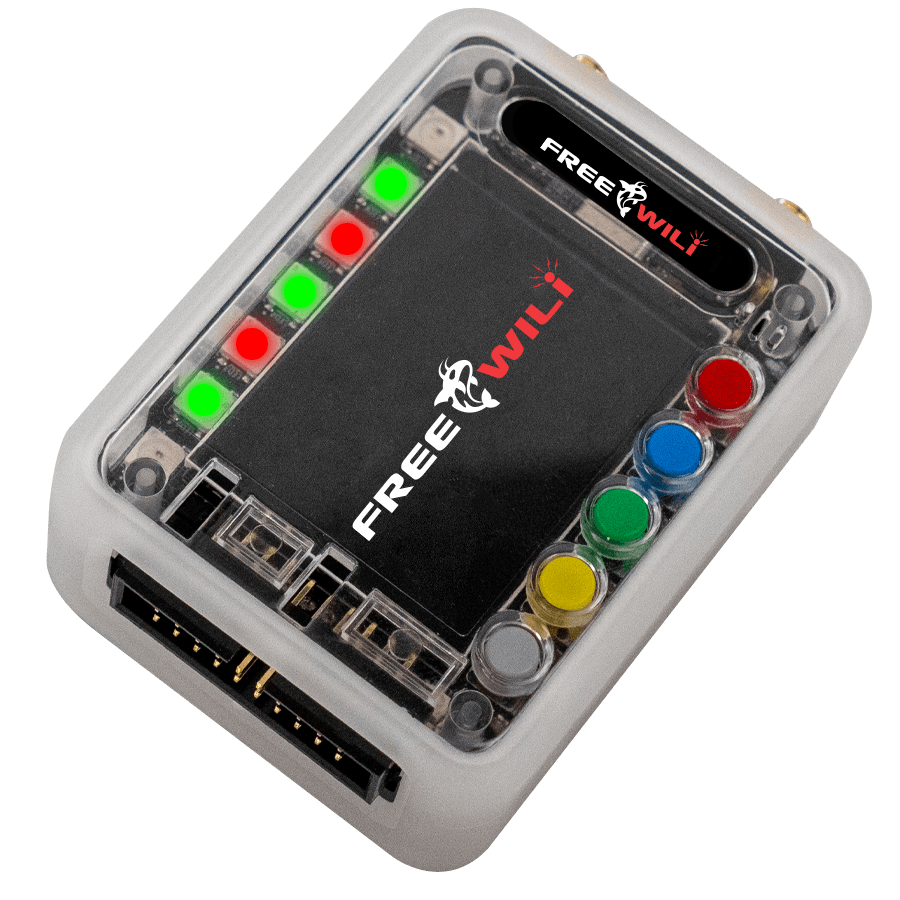

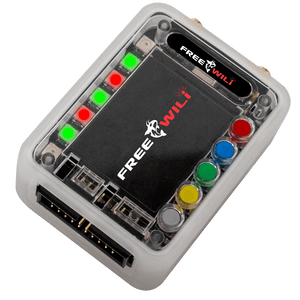

FREE-WILi OG

FREE-WILi OG is the embedded development tool you have been waiting for. It is designed to simplify the process of testing, debugging, and developing electronic systems, while packing a wide range of interfaces and hardware features into one portable device.

Use Cases

• I2C USB interface
• SPI USB interface
• UART USB interface
• USB attached screen and buttons
• Uart based protocol tool support
• TPMS fuzzer or simulator
• Keyless Entry simulator/monitor
• Cybersecurity penetration testing
• Development platform that is 80% done
• Learning platform for Embedded Systems

Features

• SPI, I2C, PIO, and UART available on GPIO
• 3 USB interfaces (Integrated HUB with 2 FS, 1 HS) for communication and power
• 11 GPIO Programmable voltage level for 1.1 to 5.5V with 24ma@3V or 32ma @5v (sn74lxc1t45)
• 2 GPIO for I2C voltage level between 0.9V to 5.5V with software enabled 10K pulls (PCA9517)
• GPIO front end includes ICE40UP5k FPGA with 8MByte SRAM and High Speed USB (FT232H)
• Two SMA connectors for antenna for longer range
• 320 x 240 Color Display
• 5 User configurable buttons
• 7 Full color LEDs
• IR transmitter and receiver
• Digital Speaker and Microphone
• Raspberry Pi Pico (RP2040) Open Micro Platform for specific applications or custom code
• Orca modules plug into GPIO header allows expansion for specific use cases
• IO App firmware allows exercising all IO, USB Host API and Standalone scripting
• 16 Mbyte x 2 on board storage (22 MByte usable)
• 1000 ma Lithium ION battery with integrated charger
• Real Time Clock (RTC)
• Accelerometer
